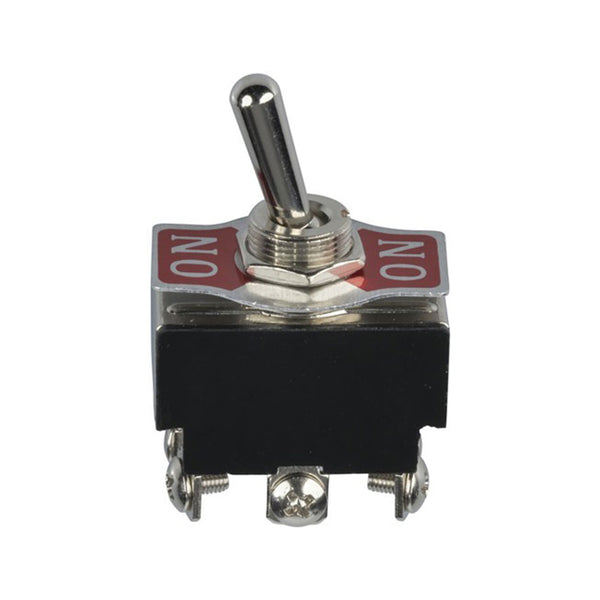

From our range of switches available in a variety of styles suitable for your specific purpose.
Product Specifications
- SOLDER TAG WITH THREADED BUSH
- Brackets indicate switch position Centre Off (on - off - on)
- OPERATING TEMPERATURE:-30 degrees - +85 degrees Celsius
- CONTACT RATING (with resistive load) Subminiature: 1 Amp @ 250VAC Miniature: 2 Amps @ 250VAC
- CONTACT RATING (with resistive load) Subminiature: 3 Amps @ 28VDC Miniature: 5 Amps @ 28VDC
- SWITCH MATERIALS CASE:Diallyl Phthalate (DAP) (UL94V-0)
- TOGGLE HANDLE:Brass, chrome plated
- BUSHING:Brass, nickel-plated
- HOUSING:Stainless Steel
- TERMINALS:Switch support components: Brass, electro-tin plated (for solderability)
- CONTACTS:Fixed and moving, Silver-plated over copper alloy (standard);Fixed and moving, gold plated over nickel-plated alloy.
- Length : 1.8 cm
- Width : 1.6 cm
- Height : 3.5 cm
